Description
Hafele DL7600 Description

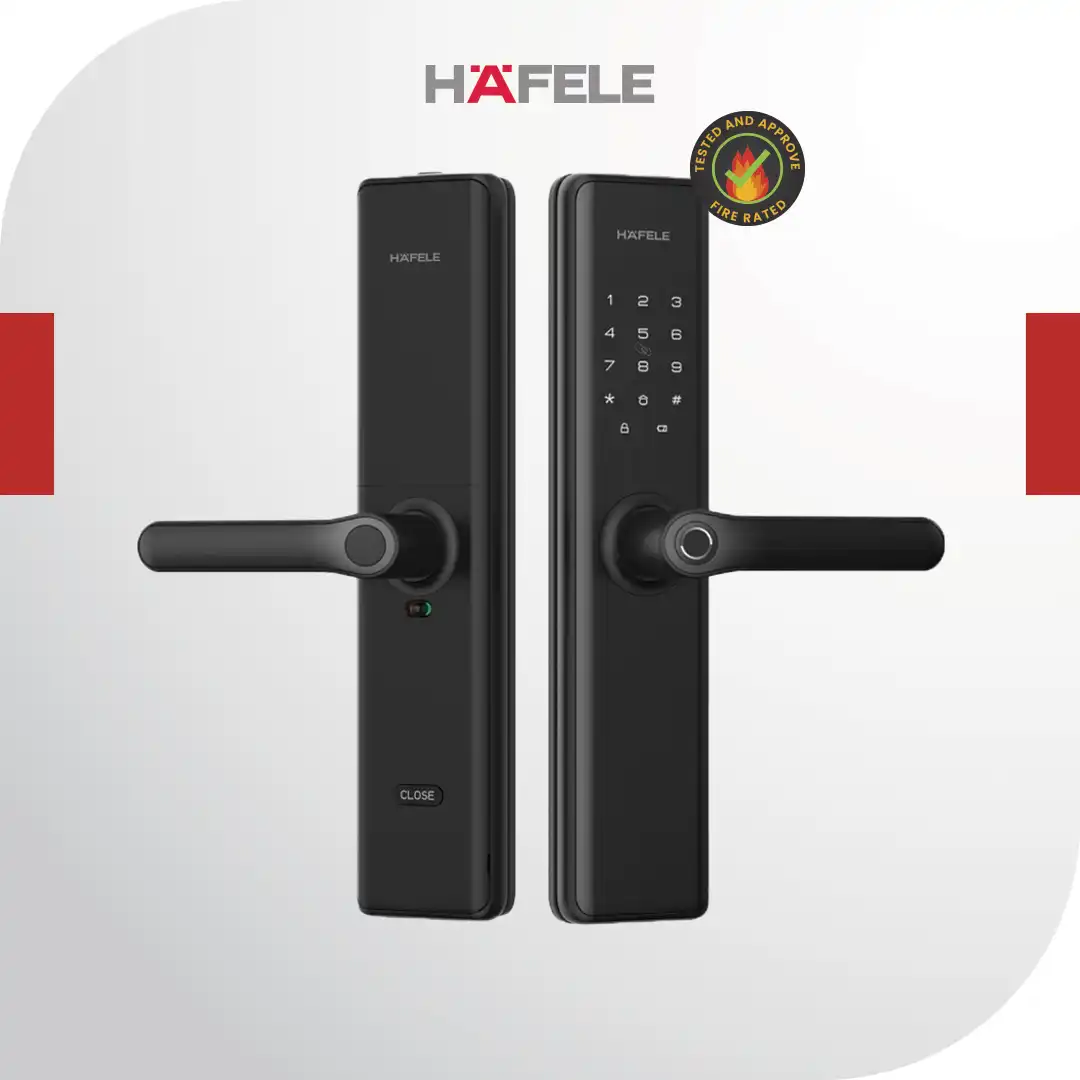

- Hafele DL7600 Lever Handle Fire Rated Digital Door Lock is designed to offer a balance of smart access and reliable performance for modern homes
- Comes with multiple access options including fingerprint, PIN code, RFID card, Bluetooth, and a physical key
- Provides flexibility for different users while maintaining convenience in daily use
- Double verification feature allows two authentication methods for added control when required
- Includes auto and manual locking modes to suit different user preferences
- Away mode is useful when the house is unoccupied
- Private mode enhances privacy from inside
- Random password function helps prevent password exposure
- Voice guide assists users during setup and operation
- Supports Bluetooth connectivity through a mobile app for easy access management
- Allows users to manage settings and access conveniently
- Includes low battery alert for timely replacement
- Emergency power option available via micro USB port for uninterrupted usage
- Built using aluminium, zinc, and ABS materials for durability
- Designed for long-term use and tested for high usage cycles
- Suitable for wooden main doors
- Combines functionality, modern design, and smart features for everyday home access
Specification Table
| Specification | Details |
|---|---|
| Model | DL7600 |
| Access Modes | Fingerprint, PIN Code, RFID Card, Bluetooth, Physical Key |
| Door Type | Wooden Door |
| Fire Rating | Up to 30 minutes |
| Certification | SS 332:2018+A1:2022 |
| Fingerprint Capacity | Up to 100 |
| RFID Card Capacity | Up to 100 |
| Password Capacity | 1 Master + 10 User Passwords |
| Material | Aluminium, Zinc, ABS |
| Front Dimensions | 76(W) x 25(D) x 341(H) mm |
| Back Dimensions | 80(W) x 27(D) x 359(H) mm |
| Power Supply | 6V (8 x AA Batteries) |
| Emergency Power | Micro USB |
| Operating Temperature | -25°C to +55°C |
| Door Thickness | 35 – 60 mm |
| Door Gap | Minimum 3 mm |
| Locking Modes | Auto / Manual |
| Special Features | Away Mode, Private Mode, Double Verification, Voice Guide, Random Password |
| App Connectivity | Bluetooth |
| Cycle Test | 100,000 cycles |
| Warranty | 3 Years |
